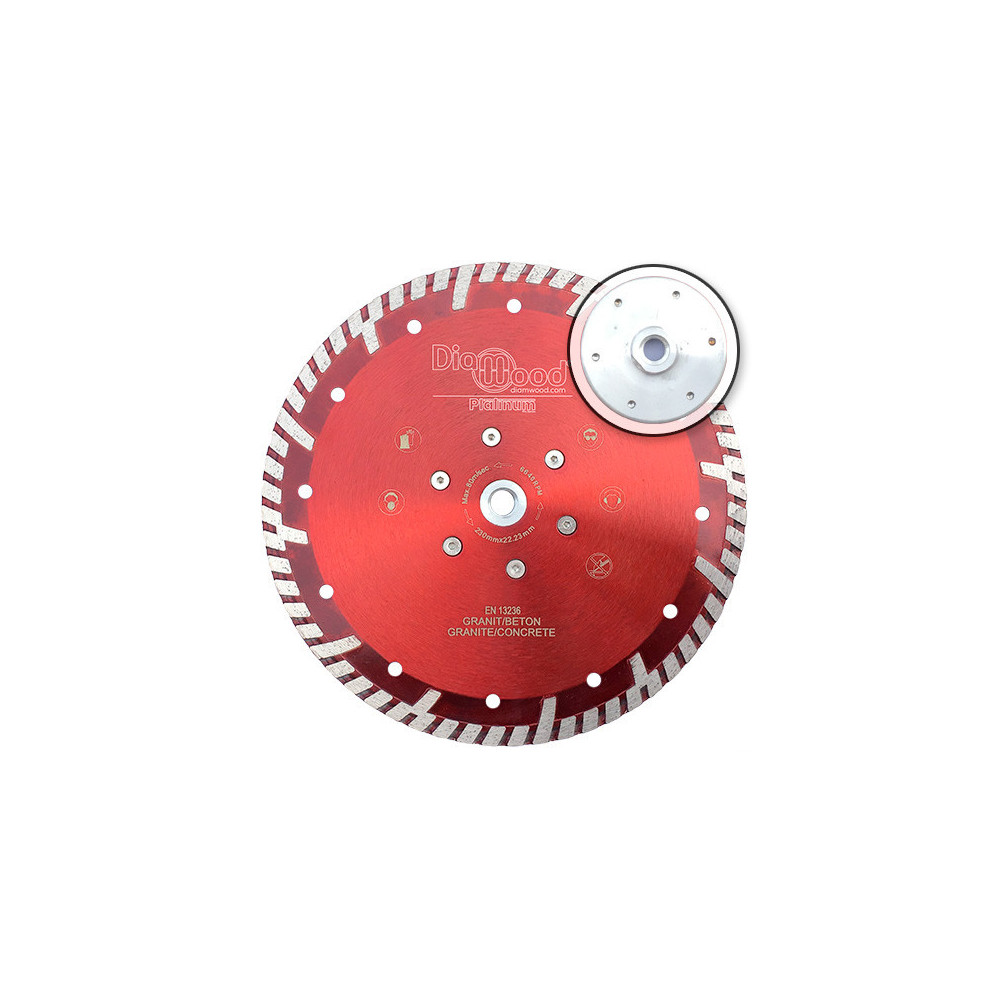

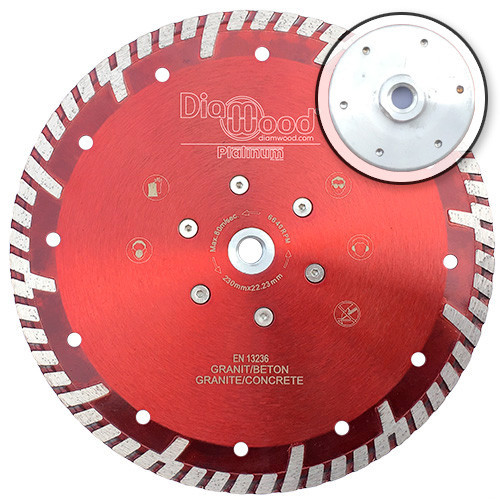

Diamond Disc Pro ULTRA SONIC D. 230 x Flange M14 x Ht. 10 mm - Tile, Granite, Reinforced Concrete - Diamwood

HPT (Hot press technology) turbo fluted diamond disc with continuous rim

The HPT (Hot press technology) continuous rim turbo fluted diamond disc is the ideal cutting tool for demanding professionals in the building and civil engineering sector. Featuring a range of technical advantages and engineered to high quality European precision in Germany, this disc guarantees exceptional performance in a variety of construction materials.

Technical Features :

• High Cutting Speed: Ensures maximum efficiency when cutting.
• Clean, precise cuts: Get clean, precise cuts every time.
• Ventilated body: The disc is equipped with a ventilation system for optimum cooling during prolonged use.
• Versatile use: Can be used wet or dry, offering total flexibility on site.
• M14 Mounting Flange: The M14 mounting flange allows flat cuts, ideal for a variety of jobs.

Compatibility:

• Suitable for use with Grinders / Discers.

Compatible materials :

• Ste Foy tile
• Granite
• Reinforced concrete
• Concrete
• Natural stone
• Breeze block
• Brick
• Other building materials

Target users :

• Carpenters
• Bricklayers
• Other building trades

Technical specifications :

• Disc diameter: 230 mm

• Disc mounting: M14 (aluminium flange)

• Segment height: 10 mm

• Diamond Rim Thickness: 2.6 mm

• Maximum Feed Speed : 80 M/S up to 230 mm diameter and 100 M/S for other diameters

Maximum rotation speed :

• 15,300 rpm for D.100 mm

• 13,300 rpm for D. 115 mm

• 12,250 rpm for D.125 mm

• 10,930 rpm for D. 140 mm

• 10,200 rpm for D. 150 mm

• 8,500 rpm for D. 180 mm

• 7,650 rpm for D. 200 mm

• 6 650 rpm for D. 230 mm

• 6,100 rpm for D. 250 mm

• 6,400 rpm for D. 300 mm

• 5,500 rpm for D. 350 mm

• 4,800 rpm for D. 400 mm

• 4,250 rpm for D. 450 mm

• 3,900 rpm for D. 500 mm

Quality and safety :

Diamwood products are renowned for their top quality, designed for professional and intensive use, while being accessible directly from the factory to avoid intermediaries. The disc complies with European standard EN 13236 and must be used in accordance with the safety instructions and European standards in force.

Diamwood, experts in equipment for the construction industry, have over 15 years' experience in supplying top-quality tools and stationary machines. Rely on our expertise for reliable performance on all your worksites.
