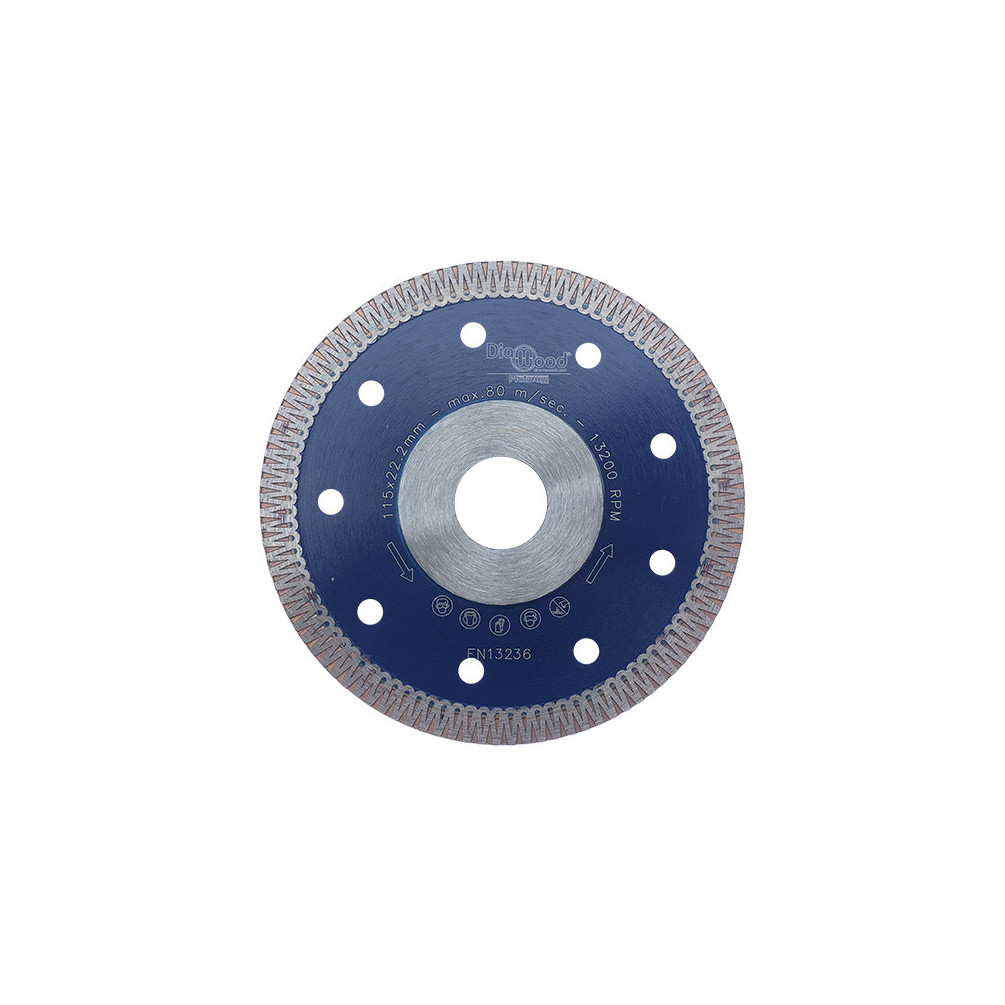

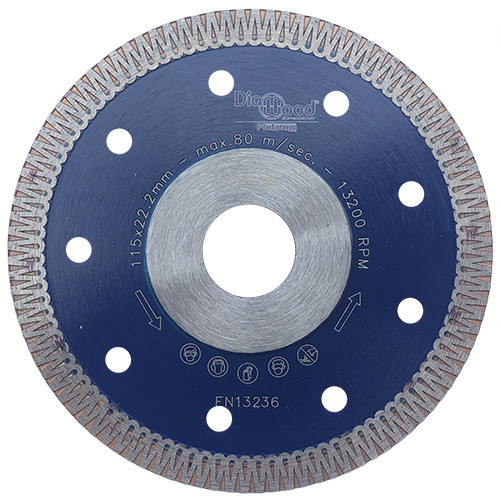

Diamond Disc Pro SCORPION D. 115 x Al. 22,23 x Ht. 8,5 x Ép. 1,3 mm - Porcelain Stoneware, Granite, Marble - Diamwood

The Turbo Crossroads Diamond Disc combines innovative design and cutting-edge performance to meet the demands of construction and civil engineering professionals. Its unique design with turbo spider segments and a continuous rim ensures high cutting speed, delivering exceptional precision every time.

Technical specifications :

• Increased cutting speed: Thanks to its turbo cross segments, this disc offers exceptional cutting speed.
• Impeccable precision: Offering a clean, precise cut, it meets the most demanding requirements.
• Vibration Reduction: Equipped with a reinforced flange on the body, it minimises vibrations during use, ensuring more comfortable work.
• Optimal cooling: Its ventilated body ensures efficient cooling, prolonging its service life.
• Versatility of Use: Can be used wet or dry, offering maximum flexibility on site.

Technical specifications :

• Disc diameter: 115 mm
• Disc bore: 22.23 mm
• Segment height: 8.5 mm
• Diamond Rim Thickness: 1.3 mm
• Maximum Feed Speed: 80 M/S up to D. 230 mm, 100 M/S for other diameters.
• Maximum rotation speed
  • 15,300 rpm for D.100 mm
  • 13,300 rpm for D. 115 mm
  • 12,250 rpm for D.125 mm
  • And so on for other diameters, up to 3,900 rpm for D. 500 mm.

Applications and users :

• Materials: Suitable for a wide range of materials such as porcelain stoneware, porcelanico, granite, marble, natural stone, ceramic and earthenware.
• Users: Ideal for tilers and other construction trades.

Professional Quality and Reliability: Diamwood products are renowned for their superior quality and durability, designed for intensive professional use. Manufactured in Europe, notably in Germany, they meet the strictest standards (EN 13236).

Competitive Price, Superior Quality: As a direct supplier, Diamwood offers its products at factory prices, eliminating the middleman and guaranteeing premium quality at an affordable price.

Choose Diamwood's Turbo Spiked Diamond Disc, the construction equipment expert for over 15 years. Always follow safety instructions and current European standards when using this equipment.
